About This

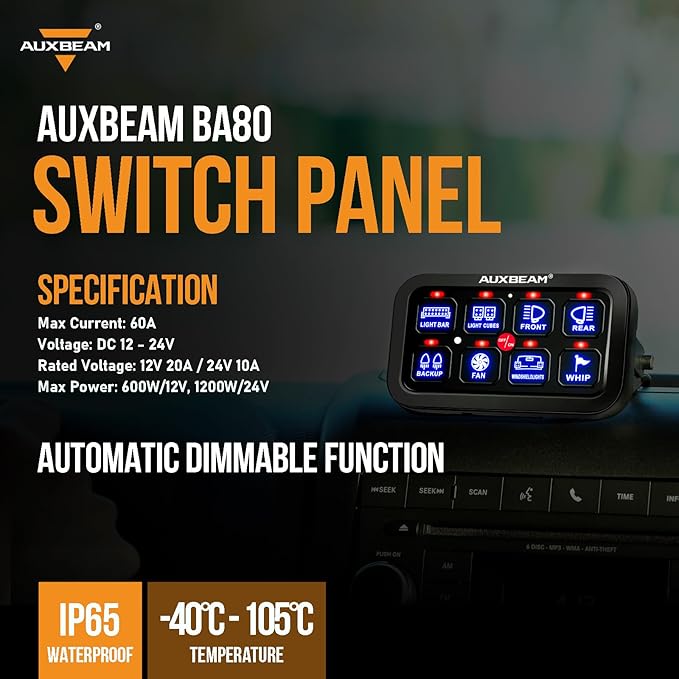

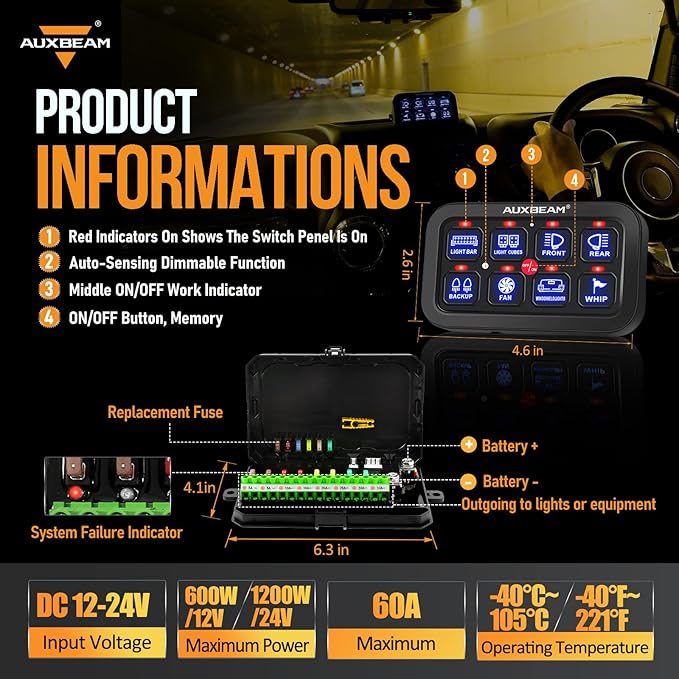

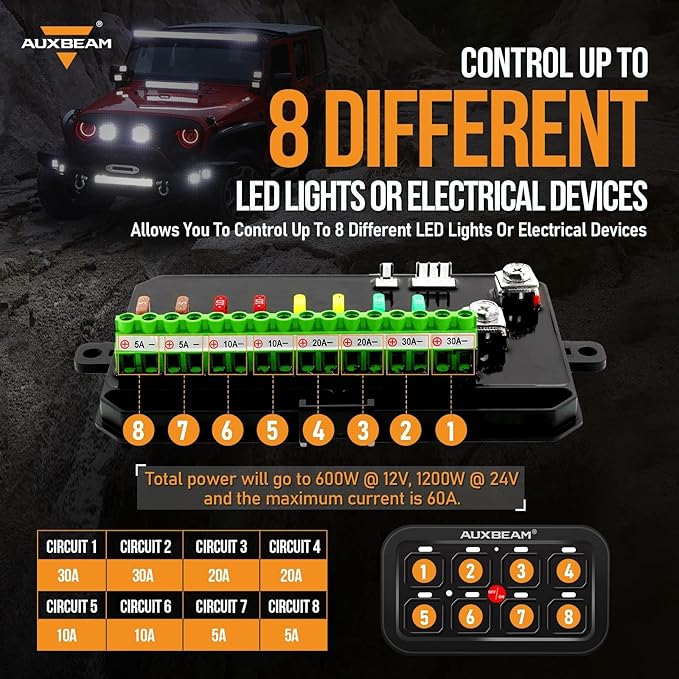

• Technical Specification: Operating voltage: DC 12-24V, max current: 60A, rated voltage: 12V 20A / 24V 10A; operating at 12 Volts: max power rating of 600W, operating at 24 Volts: max power rating of 1200W; operating temperature: -40℉ - 221℉, IP65 waterproof rate, with high sensitivity, stability and strong anti-interference ability.
• Automatic Dimmable Function: Newest 8 gang switch panel have automatic dimmable feature, the backlight brightness of the switch panel will change according the brightness of environment. The brighter the environment is, the brighter the backlight will be. The perfect 8 gang switch panel automatic dimmable designed, giving you a different user experience and ensuring your driving safety
• Safety Protection: Our this 8 gang switch panel is built-in solid state relay, not the external relay, provide over-voltage protection, reverse polarity protection, over-current protection, thermal protection, come with additional fuses for replacement, providing all your connected LED lights & accessories work safely.

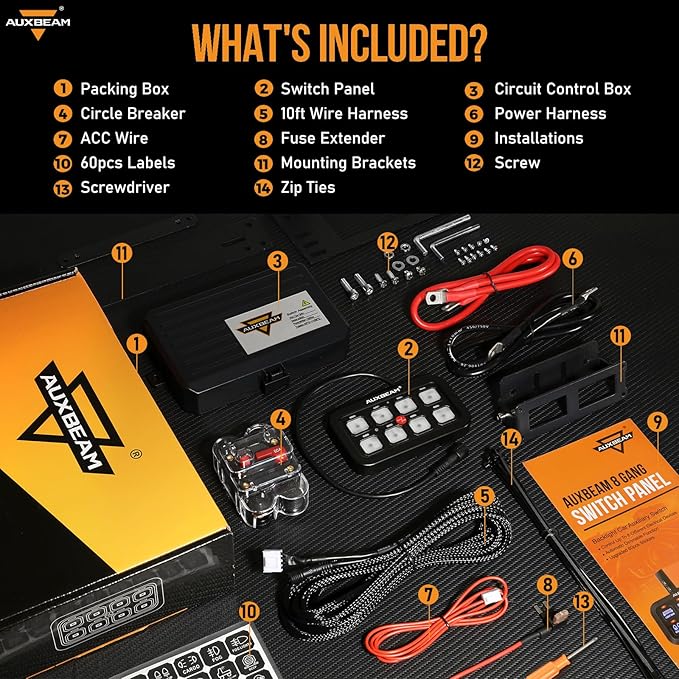

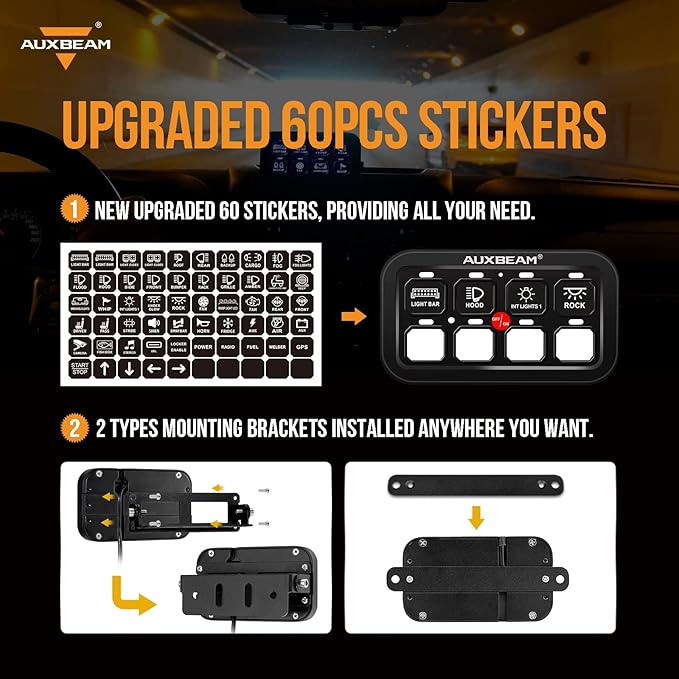

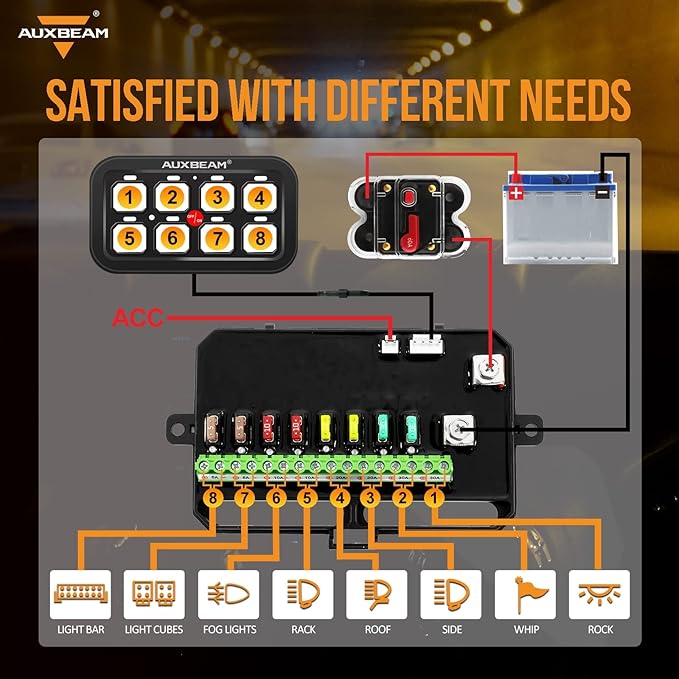

• Easy Installation: No complicated wiring, no need to cut a big hole on your vehicle. Plug & play wiring harnesses ensuring you to connect the led lights or accessories easily. Two types of mounting bracket, you can install it anywhere you need. You can customize your personal switch panel with 60pcs self-adhesive labels. The best way to clean up all the wiring and add a single panel to control everything.
• Wide Application & Warranty: Taking limited space on some vehicles into account, this more compact size switch panel control system is perfect for all situations. Auxbeam 8 In 1 touch screen panel more suitable for your needs, such as truck, boat, off road, powersport, marine, atv, utv, suv, car, bus, heavy duty etc. 2 Year Manufacturer Warranty: free replacement for any quality problems by non-human reasons.

Overview

• Operation Mode : Automatic
• Current Rating : 60 Amps
• Operating Voltage : 12 Volts
• Contact Type : Normally Closed
• Connector Type : Quick Connect
• Brand : Auxbeam
• Terminal : Physical, Quick Connect, Normally Closed
• Item dimensions L x W x H : 11.81 x 7.87 x 3.15 inches
• Circuit Type : 8-way
• Actuator Type : Touch
• Switch Type Touch Switch : Material Plastic
• : Switch Type Touch Switch
• : Material Plastic
• Mounting Type Panel Mount : Specification Met Partial
• : Mounting Type Panel Mount
• : Specification Met Partial
